SPECIFICATIONS

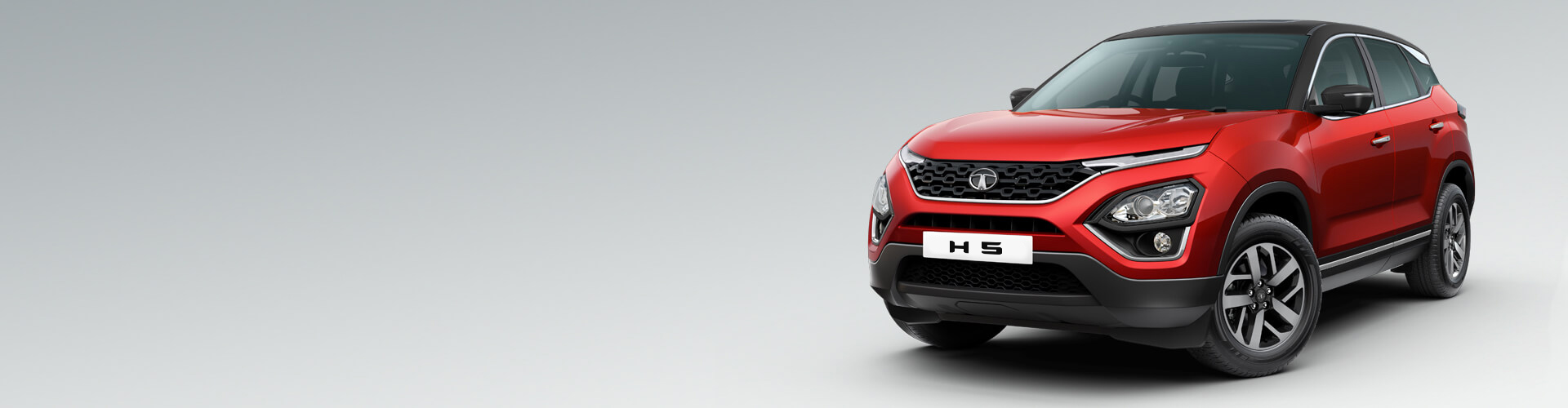

Tata Nexon Specifications Banner

SPECIFICATIONS

H5 Specifications

Architecture

Architecture

OMEGARC (Optimal Modular Efficient Global Advanced Architecture) derived from Land Rover’s D8 Platform

Engine

Type


Kryotec 2.0 l Turbocharged Engine

Fuel, Emission norm


Diesel BS6

Capacity, cylinders


1956 cc, In-line 4-cylinders

Max Power: kW@r/min


125 kW (170 PS) @ 3750 rpm

Max Torque: Nm@r/min


350 Nm@1750-2500

Type Kryotec 2.0 l Turbocharged Engine
Fuel, Emission norm Diesel BS6
Capacity, cylinders 1956 cc, In-line 4-cylinders
Max Power: kW@r/min 125 kW (170 PS) @ 3750 rpm
Max Torque: Nm@r/min 350 Nm@1750-2500
Transmission

Type

6 Speed Automatic/6-Speed Manual

Dimensions

Length x Width x Height (mm)

4598 x 1894 x 1706 (width without mirrors)

Wheelbase (mm)

2741

Boot Space (l)

425

Boot Space with Rear Seats Folded (l)

810

Brakes

Front/ Rear

Disc / Drum

Suspension

Front

Independent, Lower Wishbone, McPherson Strut with Coil Spring & Anti Roll Bar

Rear

Semi independent Twist blade with Panhard Rod & Coil Spring

Tyres

Type

(XE, XM/XMA) 235/70 R16 Steel
(XT, XZ/XZA, XZ+/XZA+) 235/65 R17 Alloys

Spare

235/70 R16 Steel

Fuel Tank

Fuel Tank capacity (l)

50

Interiors

Seating Capacity

5
